500mm Hydraulic Rebar Shear Line 42kw 380V Industrial Cutting Machine

ブランド名:	GUTE
MOQ:	1
価格:	$58,000

詳細情報

製品説明

詳細情報

起源の場所:

四川、中国

電圧:

380V

力:

42kw

重さ:

15t

寸法:

30m×5m×3m

最先端の幅:

500mm

せん断モード:

液圧切削

ローラー速度:

0-100m/min調整可能

最大せん断長:

12m

最小せん断長:

1.4m

せん断精度:

±5mm

せん断周波数:

≤12n/min

サイロシリーズ:

刃の厚さ:

40mm

ペイオフ容量:

2500kg

サーボモーター力:

16kw

ハイライト:

500mm hydraulic rebar shear

42kw industrial cutting machine

380V rebar shear line

製品説明

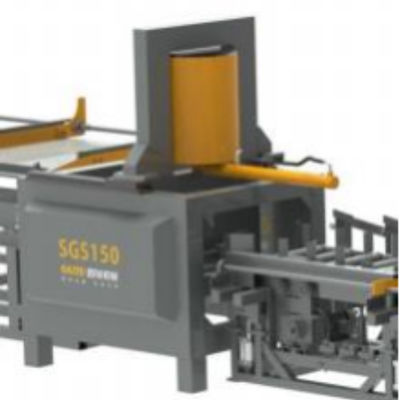

Factory Wholesale Custom Cutting Edge Width 500mm Rebar Shear Line SGS150

Key Specifications

Attribute	Value
Cutting edge width	500mm
Shearing mode	Hydraulic shearing
Roller speed	0-100m/min adjustable
Maximum shear length	12m
Minimum shear length	1.4m
Shear Accuracy	±5mm
Shear frequency	≤12n/min
Silo Series	3
Rated power	42kw
Total weight	15t
Dimensions (L×W×H)	30m×5m×3m

Product Features

PLC control system for precise shearing, ideal for steel bars with multiple specifications and small batches
24 fixed length plates with steel structure and servo motor for fast, accurate length setting
Large length blade and inclined blade design enables simultaneous cutting of multiple rebars
Centralized oil supply system ensures long operational life
3-level product storage mechanism for efficient collection
Thickened and widened gears with full encapsulation for stable cutting and enhanced safety
High-strength spiral elevator for positioning screw - resistant to deformation with high accuracy
Adjustable cutting length with continuous operation capability
Key-guided chains with rolling friction design for minimal wear and high transmission efficiency

Structural Components

Straightening Structure: Forged alloy tool steel straightening wheels for wear and impact resistance. 30mm thick steel plate wheel base for high strength and durability.

Multi-split Type Blade: Double lifespan compared to standard one-piece blades.

Servo Motor: 16KW high-power servo ensures smooth traction operation.

Pneumatic Elements: Premium Airtac brand components from Taiwan for extended service life.

Pay-Off System

2 pay-off units per machine
Maximum 2500KG carrying capacity per pay-off
Designed for easy disassembly and transport
Optional brake customization available

Optional Automatic Collector

Automatically collects finished stirrups
Adjustable collection quantity settings
Simplifies product packaging

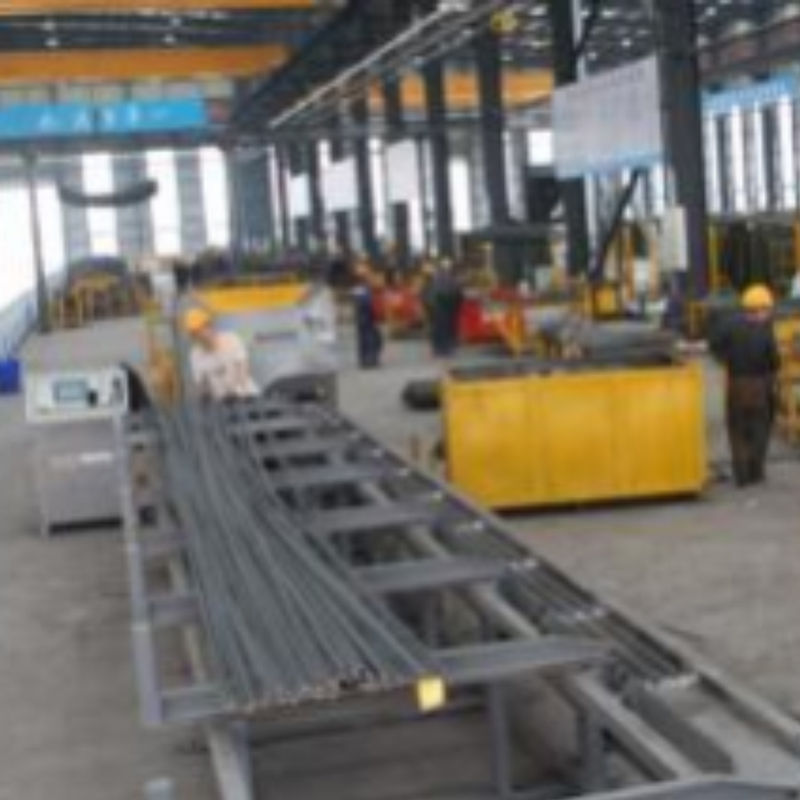

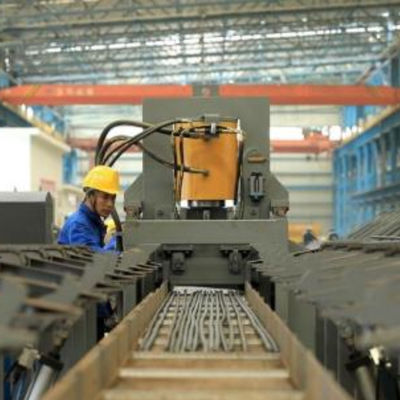

Application Examples

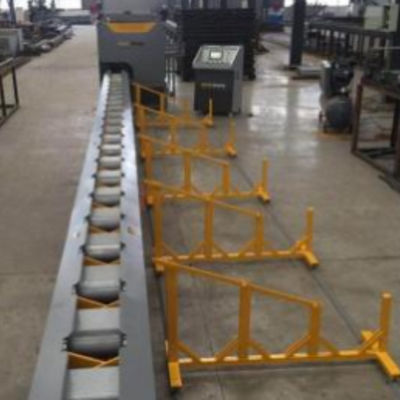

Production Line Overview

Manufacturer Profile

GUTE is a construction machinery manufacturer with 28 years of experience and over 250 workers specializing in steel bar processing machinery.

Exported to over 70 countries with 70% export share of steel bar bender/cutter machines
200+ agents in Chinese market and 10 owned brand shops across China
OEM provider for renowned European brands
Global distribution including Russia, Italy, Brazil, Algeria, India, and Middle East
Specializes in reinforcement steel bar bending, shearing, welding, and straightening machines
Expert in R&D and quality control with fast customized services

Transportation

Frequently Asked Questions

Q: What's the producing time and delivery time?

A: Orders under 5 pieces are typically in stock with delivery to Shanghai port in about 5 days. For orders over 5 pieces, production takes approximately 10-15 working days.

Q: What's the MOQ?

A: Minimum order quantity is 5 pieces. Sample orders of 1 piece are possible with additional port and delivery charges.

Q: What's the departure port?

A: Standard departure is Shanghai port, with options for Guangzhou, Qingdao, Tianjin or other Chinese ports.

Q: What's the packing?

A: Packed in iron pallets and poly wooden cases (no fumigation required).

Q: What's the payment term?

A: We accept T/T, L/C, DP, Western Union, and PayPal.

Our Service Commitment

Response to all inquiries within 24 hours
Protection of your sales area and private information
Best quality products at competitive prices
