500mm Hydraulic Rebar Shear Line with 42kw Motor

ブランド名:	GUTE
MOQ:	1
価格:	$58,000

詳細情報

製品説明

詳細情報

起源の場所:

四川、中国

電圧:

380V

寸法:

30*5*3 m

力:

42kw

重さ:

15000KG

最先端の幅:

500mm

せん断モード:

液圧切削

ローラー速度:

0-100m/min調整可能

最大せん断長:

12m

最小せん断長:

1.4m

せん断精度:

±5mm

せん断周波数:

≤12n/min

サイロシリーズ:

定格電力:

42kw

総重量:

15t

長さ制御モード:

サーボ

ハイライト:

500mm hydraulic rebar shear line

42kw motor rebar shear

heavy-duty hydraulic rebar cutter

製品説明

Excellent Quality Custom Cutting Edge Width 500mm Rebar Shear Line SGS150

Product Specifications

Attribute	Value
Video Outgoing-Inspection	Provided
Machinery Test Report	Provided
Core Components	Motor
Voltage	380V
Dimension (L×W×H)	30×5×3 m
Power (kW)	42
Weight (kg)	15000
Key Selling Points	Easy to Operate
Warranty	1 Year
Cutting Edge Width	500mm
Shearing Mode	Hydraulic shearing
Roller Speed	0-100m/min adjustable
Maximum Shear Length	12m
Minimum Shear Length	1.4m
Shear Accuracy	±5mm
Shear Frequency	≤12n/min
Silo Series	3

CNC Rebar Shear Line SGS150 Features

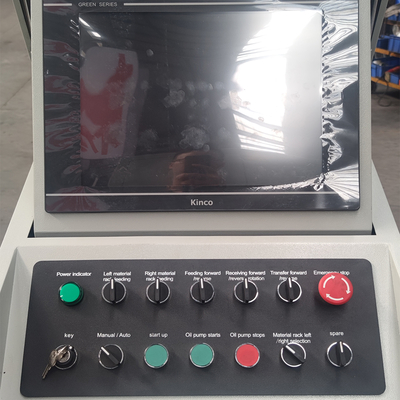

PLC control shearing precision for high accuracy of finished steel bars
24 fixed length plates with steel structure and servo motor for fast, accurate positioning
Large length blade and inclined blade design for simultaneous cutting of multiple rebars
Centralized oil supply system ensures long operational life
3-level product storage mechanism for efficient collection
Thickened and widened gears with full encapsulation for stable cutting and enhanced safety
High-strength spiral elevator for precise positioning without deformation
Adjustable cutting length with continuous operation capability
Rolling friction chain system with keys as guide ways for reduced wear and high efficiency

Straightening Structure

Straightening wheel made of forging alloy tool steel for wear and impact resistance
30mm thick steel plate preset wheel plate for high strength and durability

Multi-split Type Blade

Double lifetime compared to standard one-piece blades

Servo Motor

16KW high-power servo motor ensures smooth traction operation

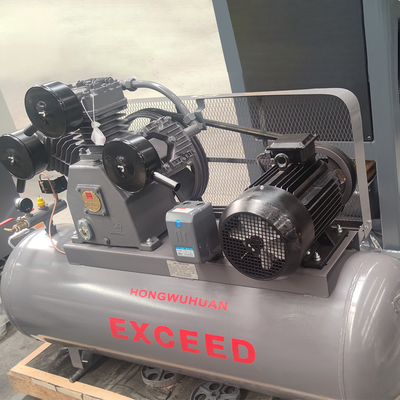

Pneumatic Element

Premium Airtac brand components from Taiwan for extended service life
Split thickening blade design (40mm thickness) for multiple uses

Pay-Off System

2 pay-off units per machine
2500KG maximum carrying capacity per pay-off
Easy disassembly for transport
Optional brake customization available

Automatic Collector (Optional)

Automatic collection of finished stirrups
Adjustable collection quantity for easy packaging

Application Examples

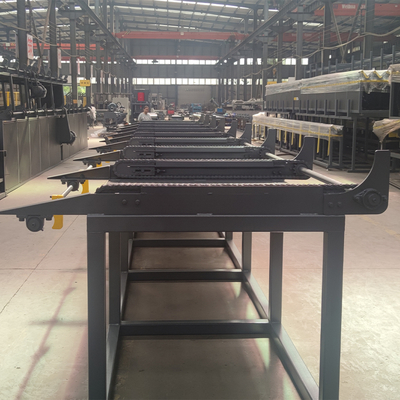

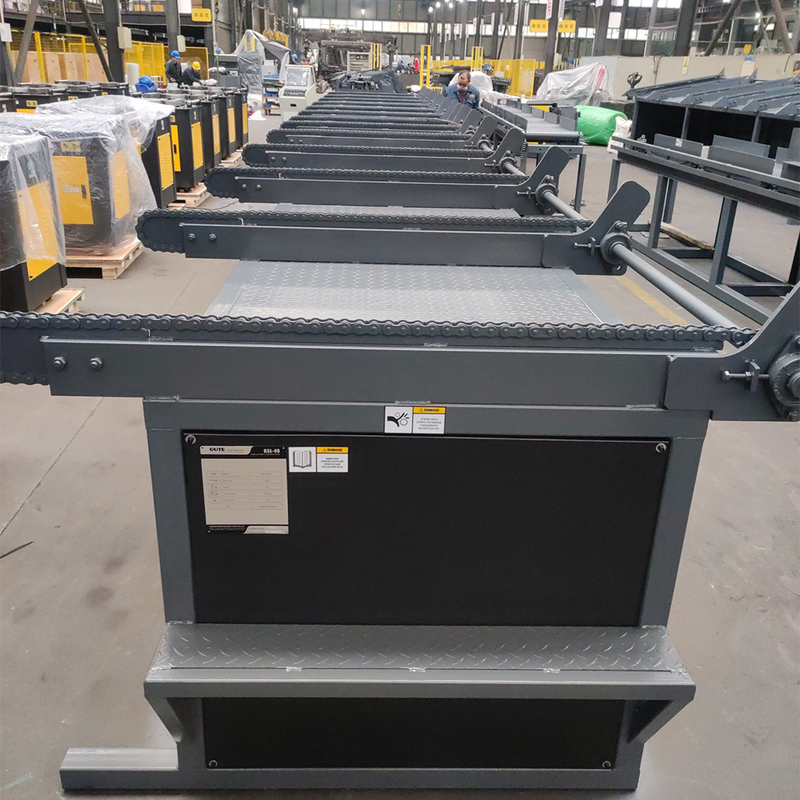

Production Line

Company Profile

GUTE is a manufacturer of construction machinery with 28 years of history and more than 250 workers producing steel bar processing machinery.

Exported to more than 70 countries with 70% export share of steel bar bender/cutter
Over 200 agents in Chinese market and 10 owned brand shops across China
OEM provider for many famous European brands
Global distribution including Russia, Italy, Brazil, Algeria, India, and Middle East
Specialized in reinforcement steel bar bending, shearing, welding, and straightening machines
Expert in fast, professional customized services with strong R&D and quality control

Transportation

Frequently Asked Questions

Q: What's the producing time and delivery time?

A: Orders under 5 pieces are from stock with 5-day delivery to Shanghai port. Orders over 5 pieces require 10-15 working days.

Q: What's the MOQ?

A: 5 pieces standard. Sample orders of 1 piece accepted with additional port and delivery charges.

Q: What's the departure port?

A: Typically Shanghai port. Guangzhou, Qingdao, Tianjin and other Chinese ports also available.

Q: What's the packing?

A: Iron pallet and poly wooden cases (no fumigation needed).

Q: What's the payment term?

A: T/T, L/C, DP, West union, PayPal accepted.

Our Service

24-hour response to all inquiries
Protection of your sales area and private information
Best quality with competitive pricing
